Product Description

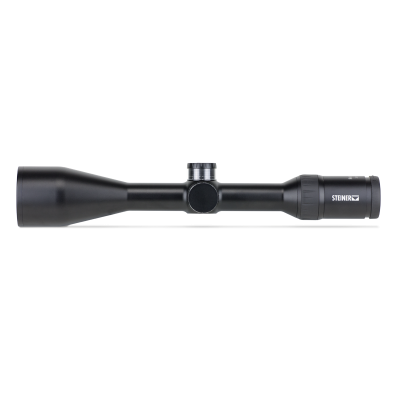

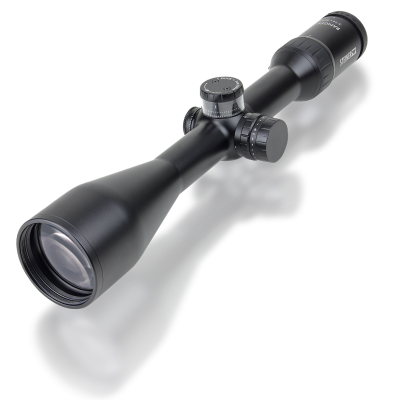

STEINER RANGER 8 3-24×56 BT 4A-I RIFLESCOPE
HIGH-CONTRAST OPTIC
Ensures fast, brilliant and high-contrast images with high edge-to-edge sharpness and outstanding detail recognition.

ZERO MODE
The elevation turret can always be reliably turned back to 0. Especially build for dark environments and quick changing target acquision.

XL-FIELD OF VIEW
For the greatest possible situational awareness and the essential safety in every situation.

INTEGRATED BALLISTIC TURRET
The turret allows the shooter to compensate the bullet drop reliably and accurately at different distances. By using 4 different numbered rings, the shooter can set marks for the preferred distances.

EXTREMELY VERSATILE
The 8x zoom makes the Ranger 8 an ultra-versatile riflescope. Game can be safely and accurately spotted at any distance. In any situation, but especially in situations where distances change quickly, the Ranger 8 will lead you to success.
Optical features
- Magnification min./max.
- 3x / 24x
- Effective lens diameter
- 56 mm – 33 mm
- Exit pupil
- 8,5 mm – 2,3 mm
- Field of view at 100m
- 12,6 m – 1,6 m
- Eye distance
- 95 mm
- Dioptric compensation
- -3 / +2
- Parallax-free
- 20m(y) to infinity
Function & Equipment
- High-Performance optics
- High Contrast
- Nitrogen filling
- Yes
- Reticle
- 4-AI fiber dot
- Reticle position
- 2nd focal plane
- Reticle adjustment per click at 100 m
- 1 cm / 100 m
- Max. Travel at 100 m height / side
- +/- 115 cm
- Reticle illumination
- 11 levels (5x day, 6x night) with OFF position between the levels, 6h Auto-Off
- Functional area
- -25°C to +63°C
- Pressurised waterproof
- 1 m
General features & accessories
- Depth
- 375 mm
- Weight
- 774 g
- Centre tube diameter
- 30 mm
- Lens-tube body diameter
- 64 mm
- Accessories
- flip up covers (Obj+Oc)
- Warranty
- 10 years, 2 years on electronic parts
- Article number
- 3003904704
