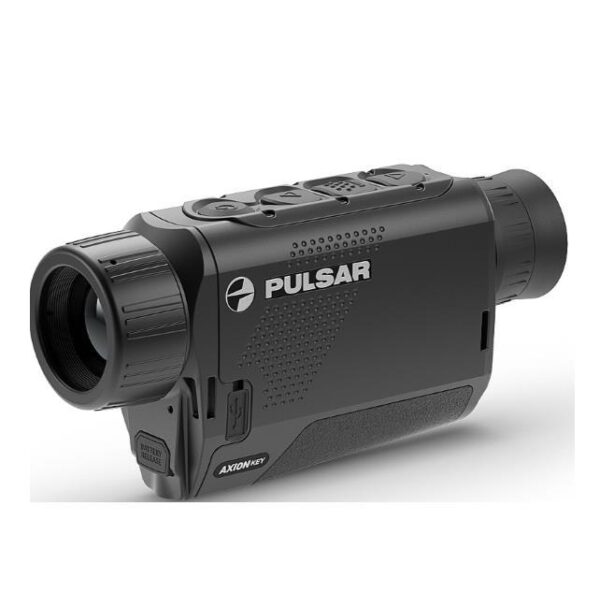

Pulsar Axion Key XM30

Product Description

Pulsar Axion Key XM30

Small Pocket-sized Format

Firstly, designed to fit perfectly in one hand or a pocket of a standard size, Axion Key ensures comfortable grip position and easy carrying. Compact size of thermal imager makes it an optimal portable unit for scouting and spotting.

Compact size, user-friendly controls and ergonomic design ensure the highest level of comfort and usability

Long Detection Range

Powerful objective lens in combination with a 12 µm professional grade thermal imaging sensor provides exceptional detection capabilities. A standard 1,8 m (6 ft) tall object can be detected at a 1700 m (1800 yds) distance in complete darkness.

12 µm Thermal Imaging Sensor

New thermal imaging sensor with 12 µm pixel pitch helps to achieve higher optic magnification and observation distance and simultaneously helps to make the unit more compact.

Rugged Magnesium Alloy Housing

Housing made from light weight magnesium alloy ensures high structural rigidity and ruggedness while retaining small weight and ergonomics.

B-Pack Mini Power System

Miniature power elements used in Axion models provide sufficient operation time and can be quickly replaced. B-Pack mini batteries can be quickly charged either with included charger station or in the unit connected to USB.

More features

Color Palettes

The 8-color palette enhances viewing in varying conditions. While the classic “White Hot” mode is exceptionally versatile, “Hot Black” is often favored for detecting wildlife at night. Red monochrome helps to reduce or prevent bright backlight from exiting the eyepiece. Sepia often improves long-range observation while “Red Hot”, “Rainbow” and “Ultramarine” enhance temperature differences of various object attributes. Violet helps to identify objects faster.

Instant Start-up

In all, thanks to the new revolutionary electronics unit can be started almost instantly. Quick start-up helps to save energy and thus prolongs time of operation. The unit can be kept in a pocket and then rapidly activated when the right time comes.

IPX7 Waterproof Rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The Axion Key is designed to run flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.

Picture in Picture Function

Finally, upon activation Picture in Picture function displays second small image with magnification in the top part of the screen. Small image helps to zoom in on a target while retaining the rest of the field of view visible.

Specifications

Main

• Sensor: 320×240 pix. @ 12 µm
• Objective Lens: F30/1.2
• Magnification: 2.5 – 10 (x4 zoom)
• Detection Range: 1200

Sensor

• Type: uncooled
• Resolution: 320×240
• Pixel Pitch: 12
• Frame rate: 50

Weight & Size

• Dimensions (mm): 143x41x69
• Weight (kg): 0.25

Optics

• Objective lens: F30/1.2
• Magnification, x: 2.5 – 10
• Field of view (HxV), degrees / m @ 100 m: 7.3×5.5. / 12.8×9.6

Power Supply

• Output voltage: 3.0 – 4.2
• Battery type: Li-Ion Battery Pack APS3
• Capacity (mah): 3200
• Operating time on battery pack (at t=22°C), h *: 4+
• External power supply: 5V

Display

• Type: LCOS
• Resolution: 960×720

Range Performance

Detection range: 1200
