Product Description

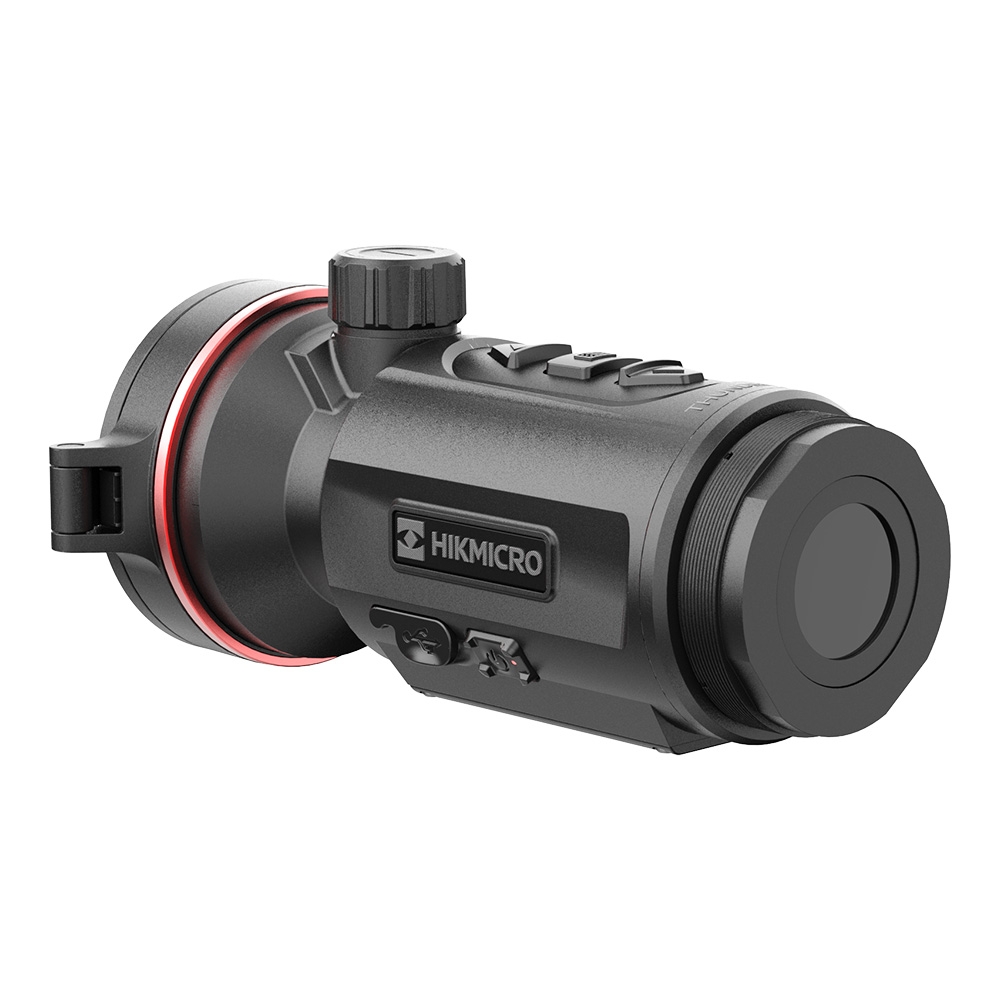

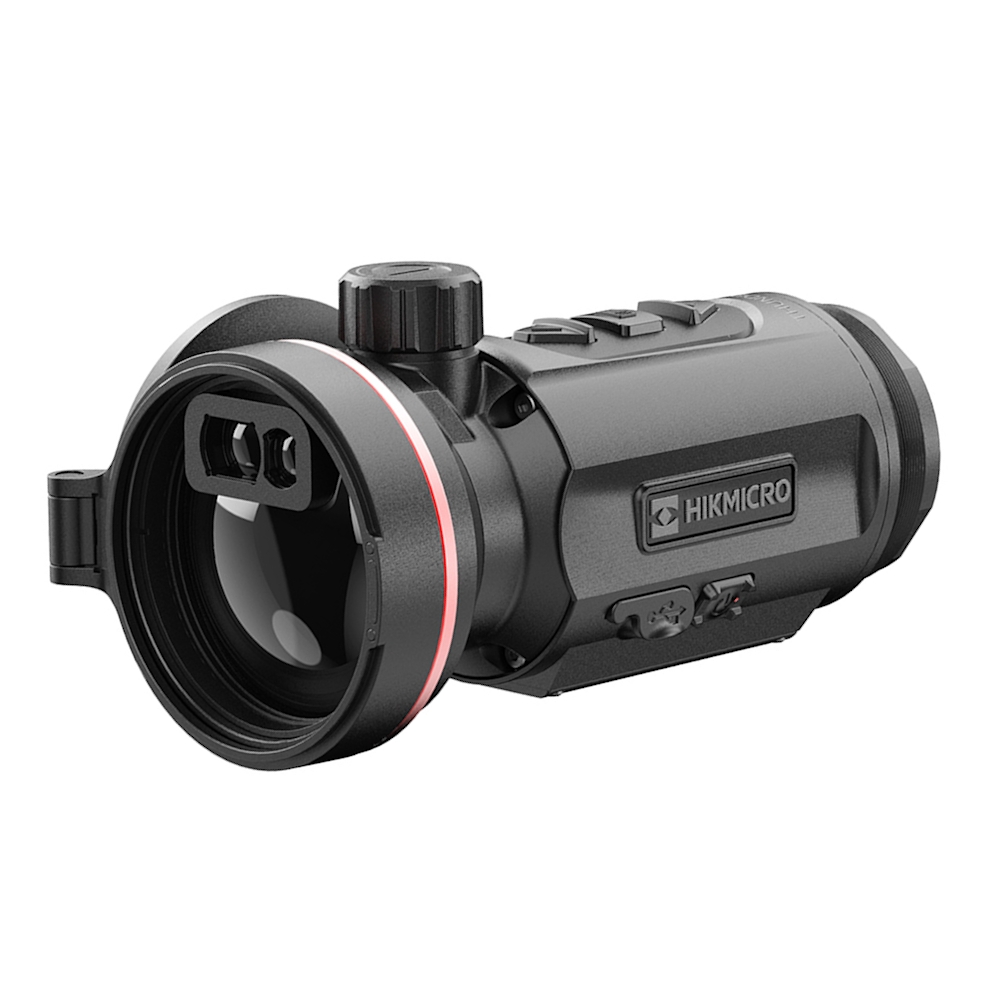

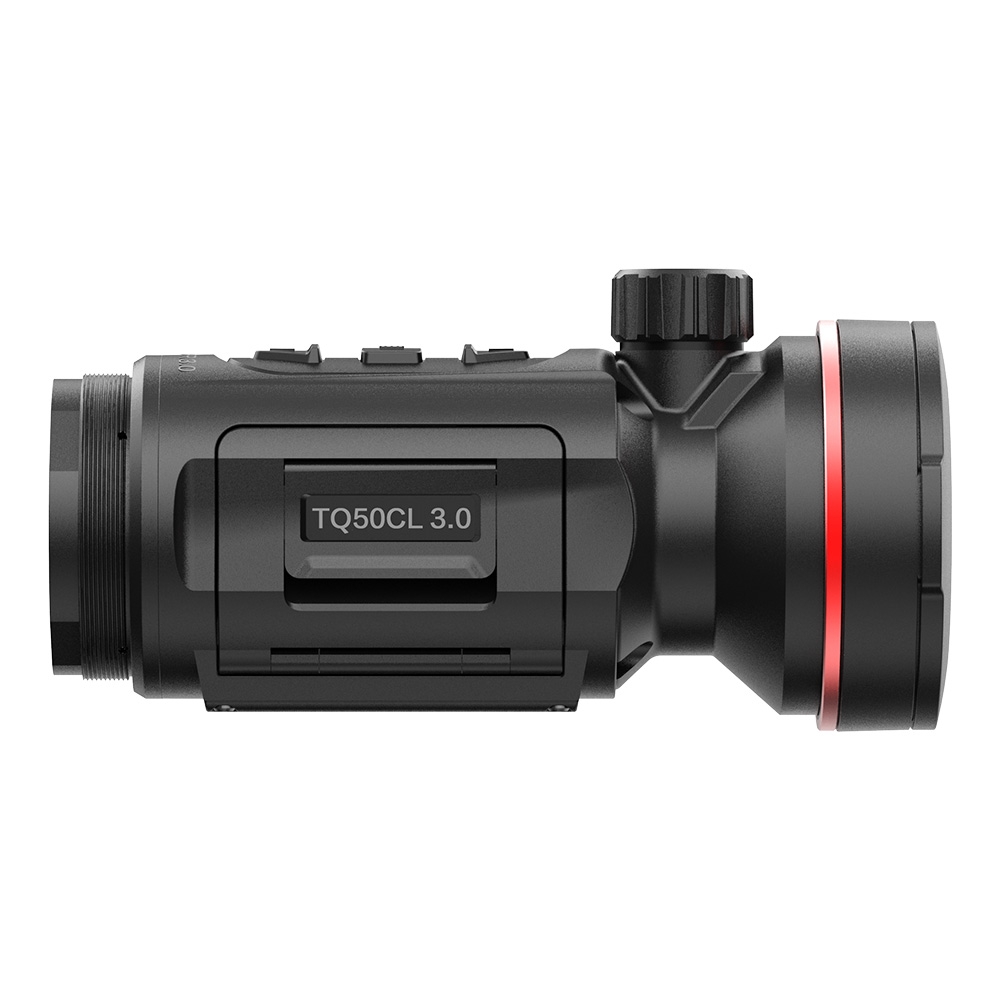

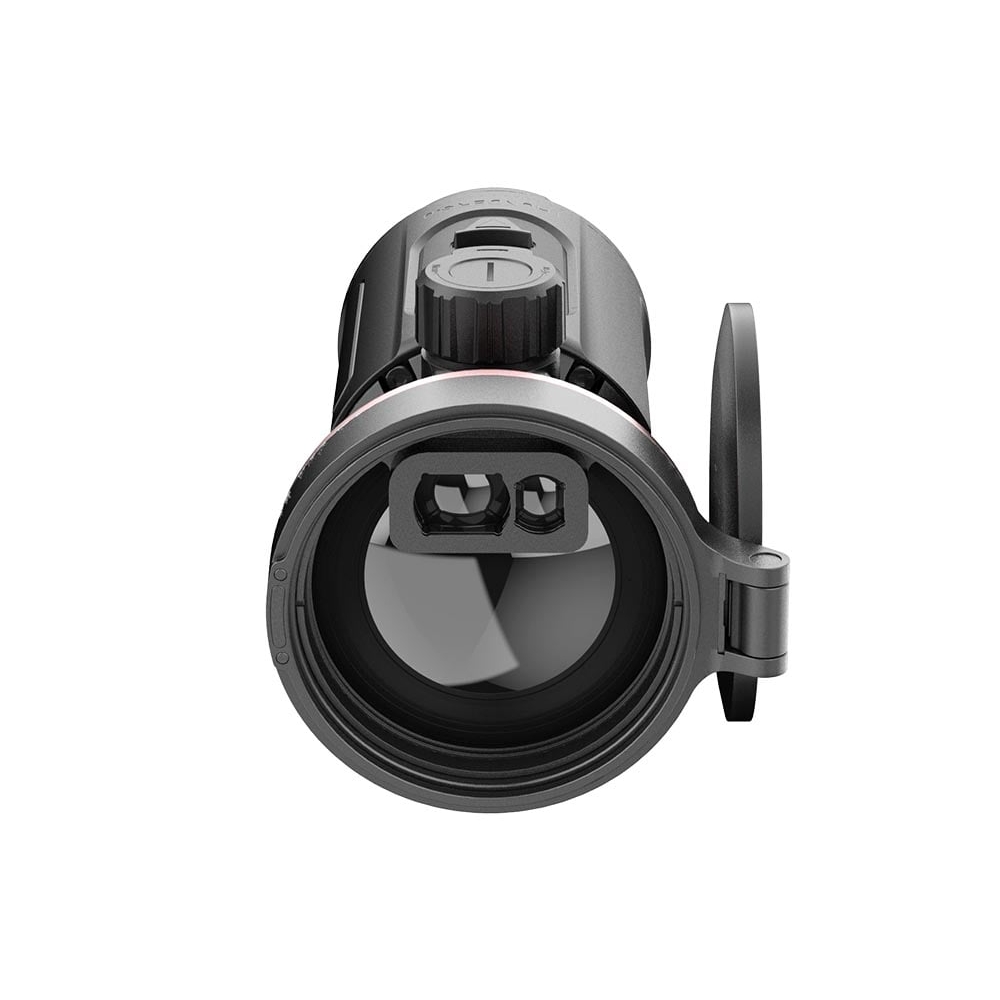

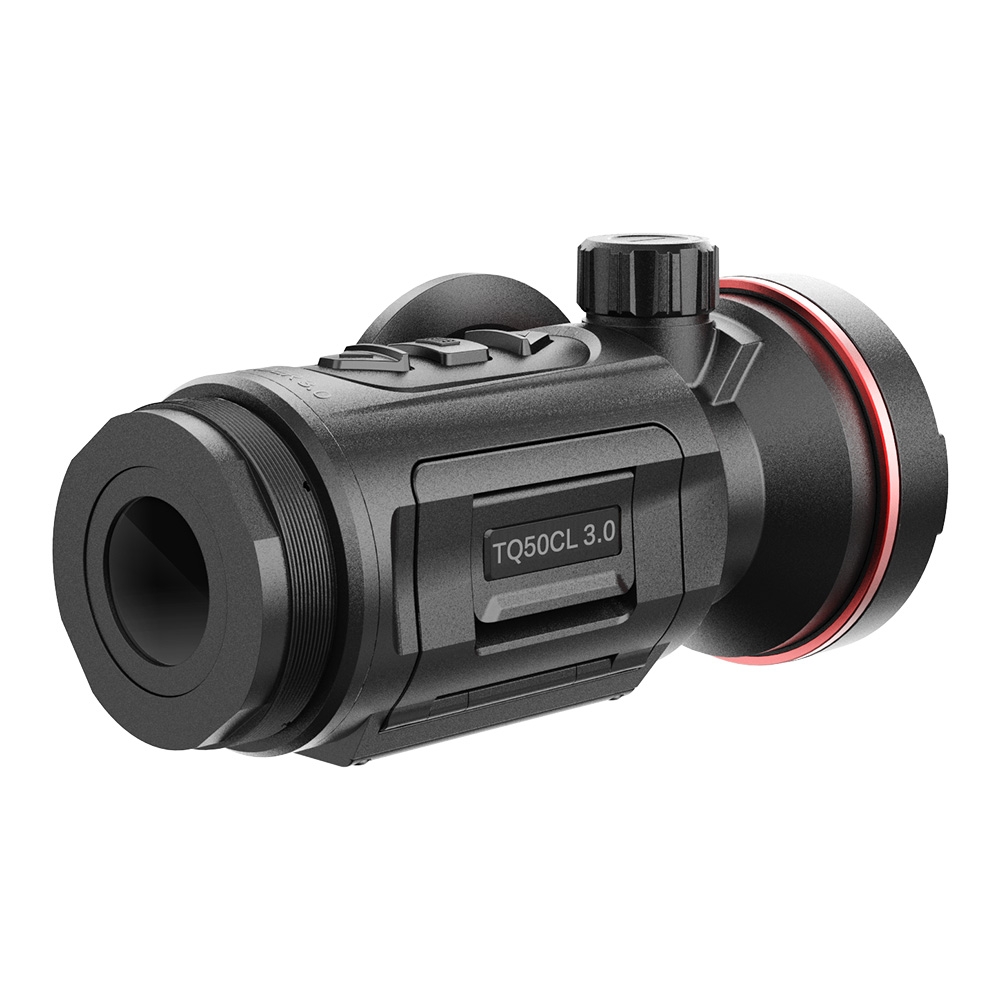

HIKMICRO Thunder 3.0 TQ50CL Thermal Front Clip-On with LRF

The HIKMICRO Thunder 3.0 TQ50CL Thermal Front Clip-On with Laser Rangefinder combines high-performance thermal imaging, advanced image processing and integrated distance measurement in one compact unit. Designed to fit in front of a compatible daytime riflescope, it brings thermal imaging capability to your existing optical setup without replacing your day scope.

Thunder 3.0 models feature the Rusan Quick-Release clamp system, which allows for quick and repeatable attachment and detachment from your optical scope with the twist of a locking ring.

At its core is a high-resolution 640×512 thermal sensor with a 12μm pixel pitch and NETD below 15mK, delivering detailed thermal images by detecting even small temperature differences. The 50mm F1.0 lens provides a detection range of up to 2,600 metres, making the TQ50CL well suited to long-range observation in challenging weather and low-light conditions.

An integrated 1,000m laser rangefinder (LRF) is built directly into the lens assembly, allowing distance measurements without the need for a separate rangefinding device. With measurement accuracy of ±1 metre, it provides useful distance information while maintaining the unit’s compact design.

HIKMICRO’s Shutterless Image System (HSIS) removes interruptions associated with traditional shutter calibration, helping maintain a smooth viewing experience. Image Pro 3.0 processing further enhances thermal image detail and target definition, while the 1920×1080 OLED display provides a clear, detailed viewing picture.

The Thunder 3.0 TQ50CL supports compatible daytime riflescopes with magnifications from 1x to 15x. It also features six thermal colour palettes, including White Hot, Black Hot, Red Hot and Fusion, allowing users to adjust the image according to viewing conditions.

Built around a durable magnesium alloy housing, the unit carries an IP67 protection rating and is tested to withstand recoil forces of up to 1000g/0.4ms. Two replaceable, rechargeable batteries provide up to five hours of operation under the manufacturer’s stated test conditions, with USB Type-C external power support for extended use.

With 64GB of built-in storage, onboard video recording, audio recording, recoil-activated recording and snapshot capture, the HIKMICRO Thunder 3.0 TQ50CL offers a comprehensive thermal imaging package with an integrated laser rangefinder.

Key Features

• 640×512 Thermal Sensor: High-resolution thermal imaging with a 12μm pixel pitch.
• NETD Below 15mK: High thermal sensitivity for improved image detail and temperature contrast.
• 50mm F1.0 Lens: Designed for long-range thermal observation.
• 2,600m Detection Range: Detects heat sources at distances of up to 2,600 metres.
• Integrated 1,000m LRF: Built-in laser rangefinder with ±1m measurement accuracy.
• HSIS Technology: Shutterless imaging system for uninterrupted viewing.
• Image Pro 3.0: Advanced image processing for enhanced thermal detail and target definition.
• Day Scope Compatibility: Supports compatible daytime riflescopes with magnification up to 15x.
• 1920×1080 OLED Display: High-resolution 0.49-inch display.
• 64GB Internal Storage: Built-in memory for photographs and video recordings.
• Recoil-Activated Recording: Automatically records footage when recoil is detected.
• Replaceable Batteries: Rechargeable Li-ion battery system offering up to five hours of operation.
• IP67 Protection: Dustproof and waterproof construction.
• High Shock Resistance: Tested to withstand recoil forces up to 1000g/0.4ms.

Technical specifications

Thermal Imaging and Advanced Technology

High-Sensitivity 640×512 Thermal Sensor

The 640×512 uncooled thermal detector features a 12μm pixel pitch and NETD below 15mK. This high level of thermal sensitivity helps distinguish subtle temperature differences, providing detailed images in difficult weather and low-visibility conditions.

50mm F1.0 Thermal Lens

The 50mm F1.0 lens delivers a detection range of up to 2,600 metres, making it suitable for long-range thermal observation.

HIKMICRO Shutterless Image System (HSIS)

HSIS technology eliminates traditional mechanical shutter calibration, reducing interruptions and maintaining a smooth thermal image.

Image Pro 3.0

Image Pro 3.0 enhances image detail and target definition, helping produce a clearer thermal picture while retaining important background information.

Integrated Laser Rangefinder

The built-in laser rangefinder measures distances of up to 1,000 metres, with an accuracy of ±1 metre. Integrated directly into the lens assembly, the LRF provides distance measurement without requiring an additional external rangefinder.

• Maximum measuring range: 1,000m
• Minimum measuring range: 10m
• Measurement accuracy: ±1m
• Laser wavelength: 905nm
• Laser safety class: Class 1

Recording, Storage and Connectivity

The Thunder 3.0 TQ50CL includes 64GB of internal eMMC storage for photographs and video recordings. Its recording functions include onboard video with audio, recoil-activated recording and snapshot capture.

Five zeroing profiles, virtual reticle functionality and compatibility with the HIKMICRO Sight app provide additional configuration options.

USB Type-C connectivity supports direct charging and external power.

What’s Included in the Box?

• HIKMICRO Thunder 3.0 TQ50CL Thermal Front Clip-On with LRF
• Battery charger
• Type-C USB cable
• Lint-free cleaning cloth
• Quick start guide
• 2 × rechargeable batteries
• Wrench
• Carrying case

Important Ordering Information

Scope Adapter Requirement: When placing your order, please provide the exact external diameter of your daytime scope’s objective lens. This information is required so that we can supply the correct adapter clamp for your setup.

UK Sales Restriction: Due to HIKMICRO distribution rights and agreements, we can only sell HIKMICRO products to residents of the United Kingdom.

Frequently Asked Questions

What is the detection range of the HIKMICRO Thunder 3.0 TQ50CL?

The TQ50CL has a thermal detection range of up to 2,600 metres, depending on environmental conditions and the size of the heat source.

Does the HIKMICRO TQ50CL have a built-in laser rangefinder?

Yes. It features an integrated 1,000m laser rangefinder with a measurement accuracy of ±1 metre.

What thermal sensor does the TQ50CL use?

It uses a 640×512 uncooled thermal sensor with a 12μm pixel pitch and NETD below 15mK.

How long does the battery last?

The supplied rechargeable Li-ion battery system provides up to five hours of operation under the manufacturer’s stated conditions, with the hotspot switched off and LRF switched on at 25°C.

Can the Thunder 3.0 TQ50CL be used with a daytime riflescope?

Yes. It is designed as a front-mounted thermal clip-on for compatible daytime riflescopes, supporting magnifications from 1x to 15x. The correct adapter clamp must be selected for the external objective diameter.

Is the HIKMICRO Thunder 3.0 TQ50CL waterproof?

It has an IP67 protection rating, providing protection against dust and water ingress.

Does the TQ50CL record videos?

Yes. It has 64GB of internal storage and supports onboard video recording with audio, recoil-activated recording and snapshot capture.
