Product Description

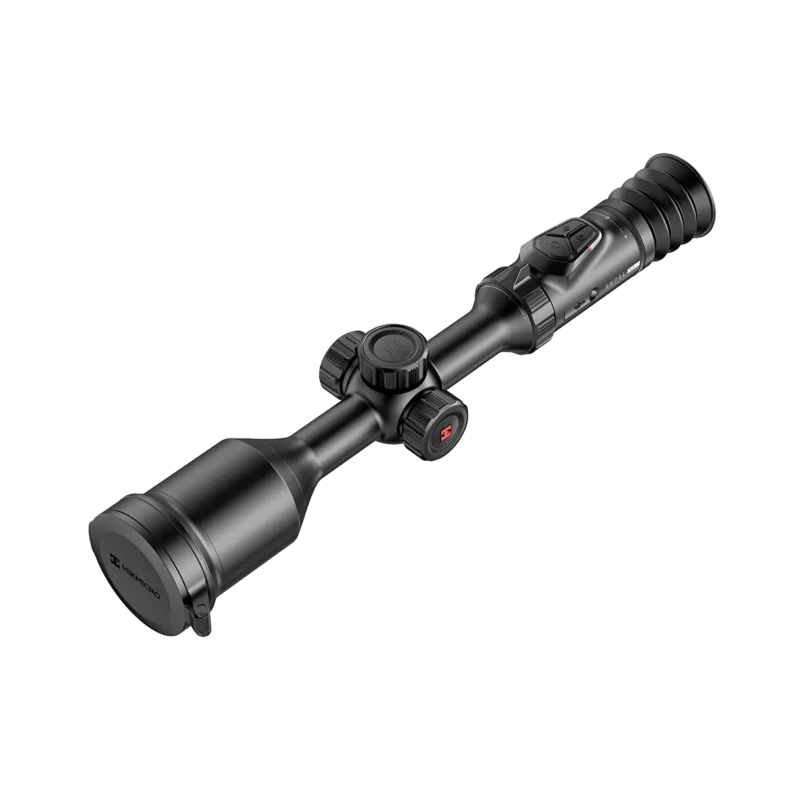

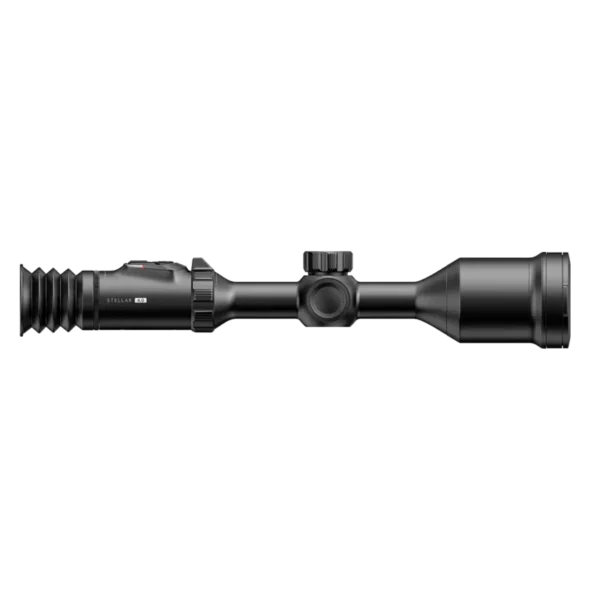

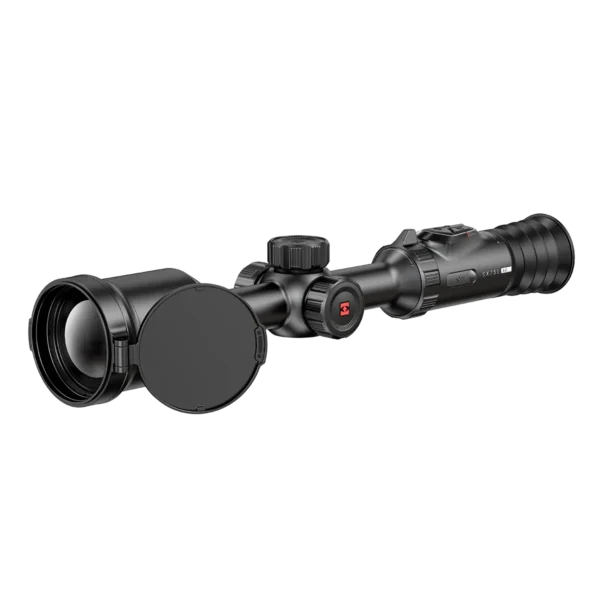

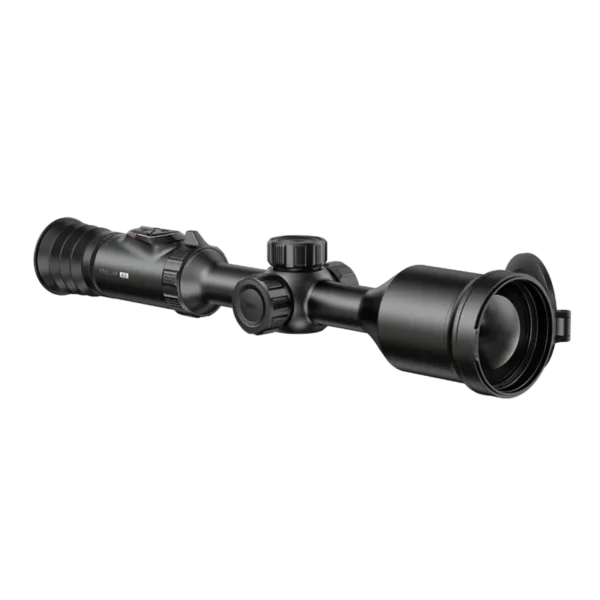

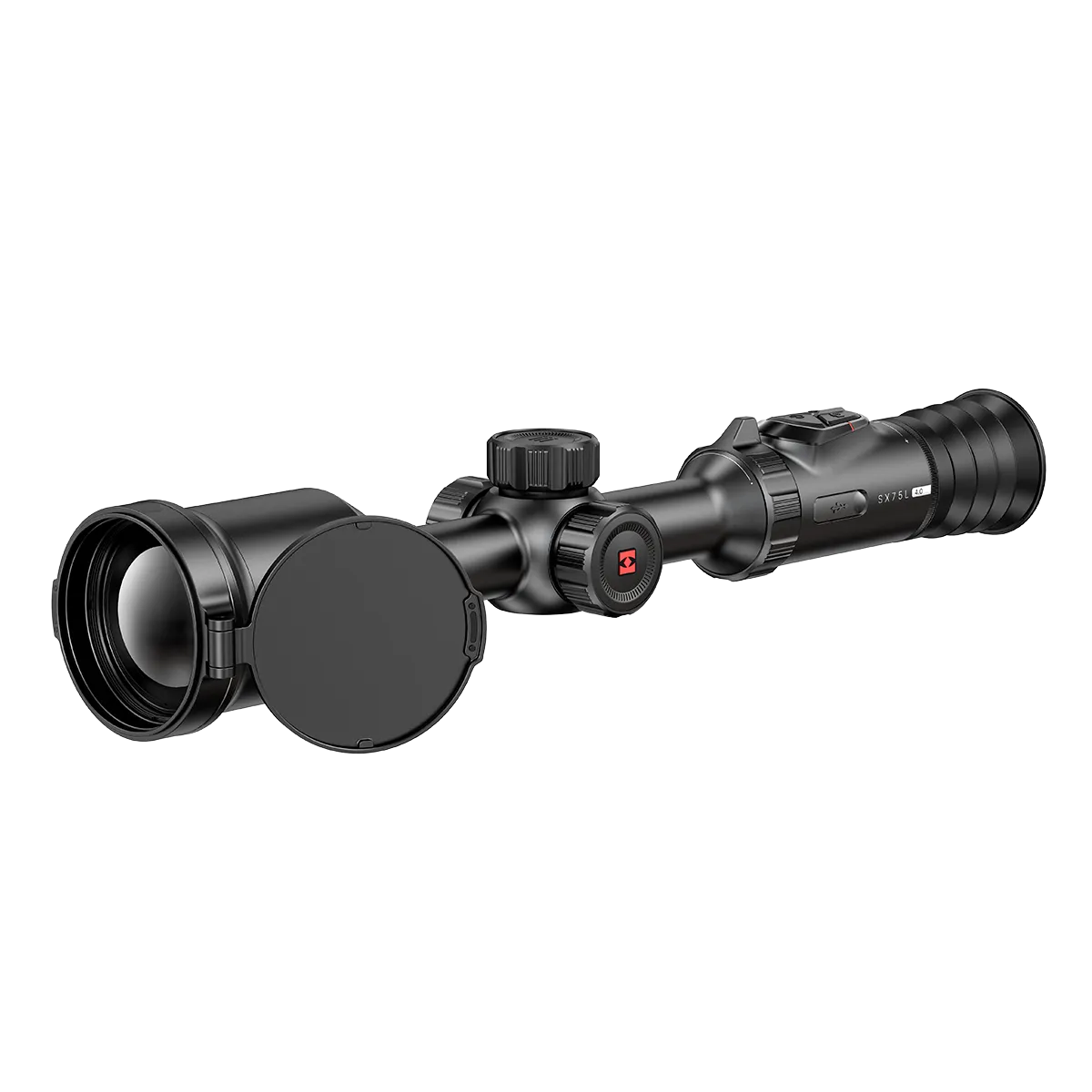

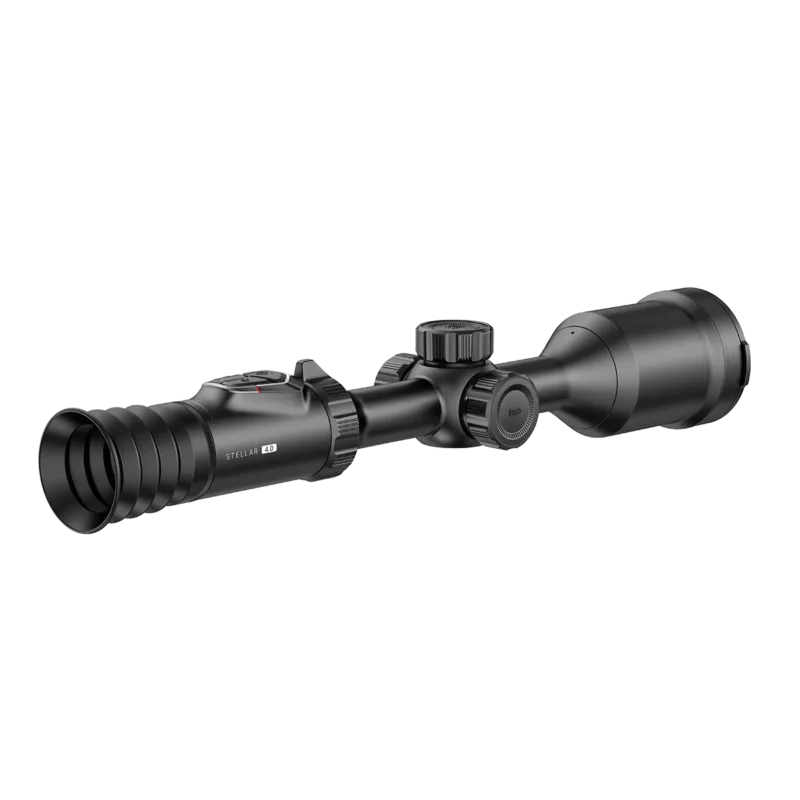

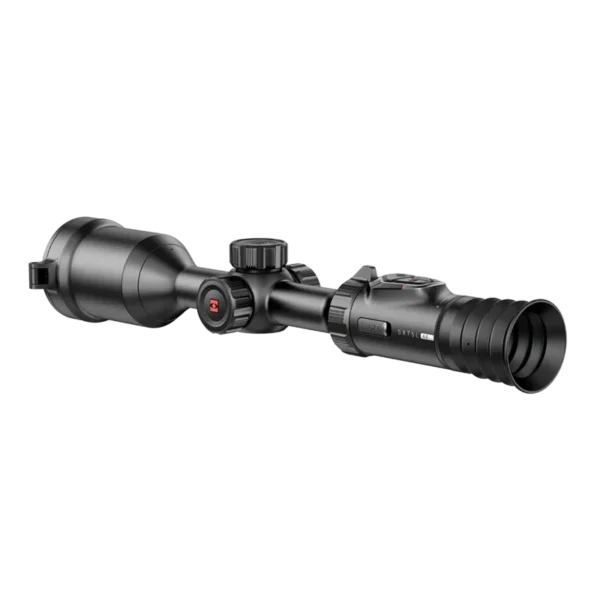

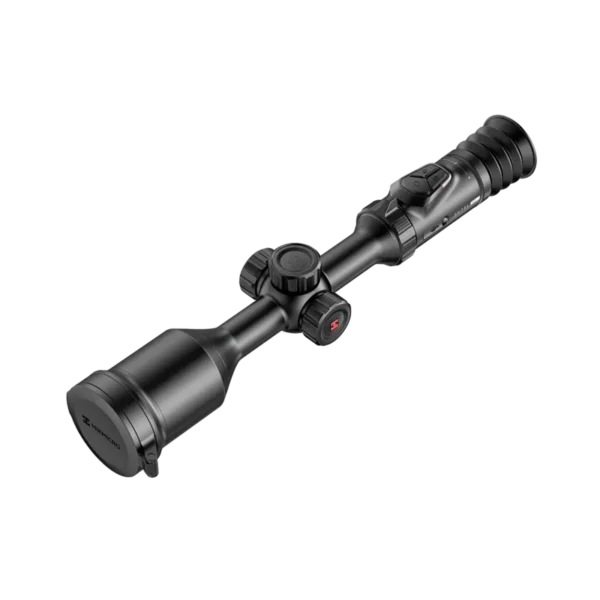

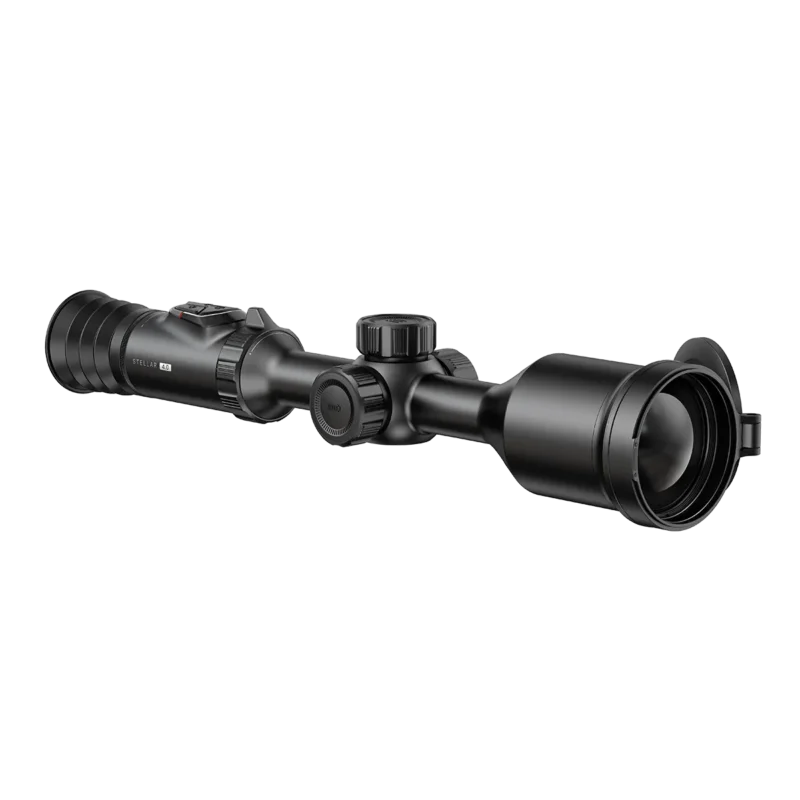

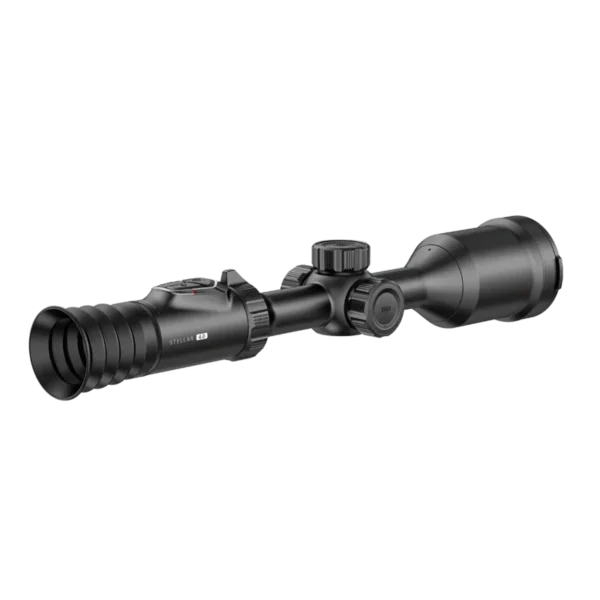

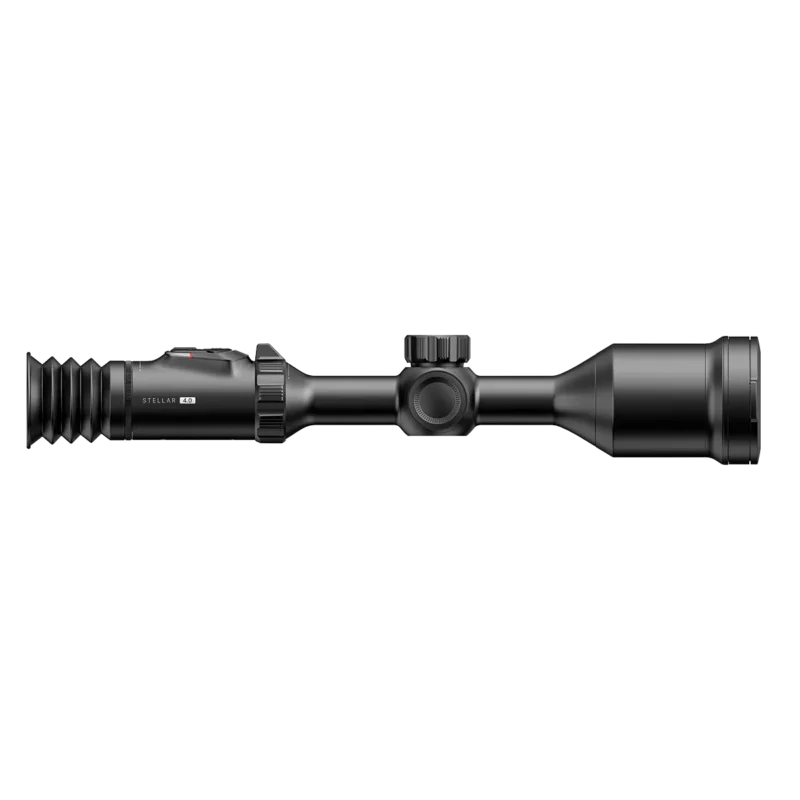

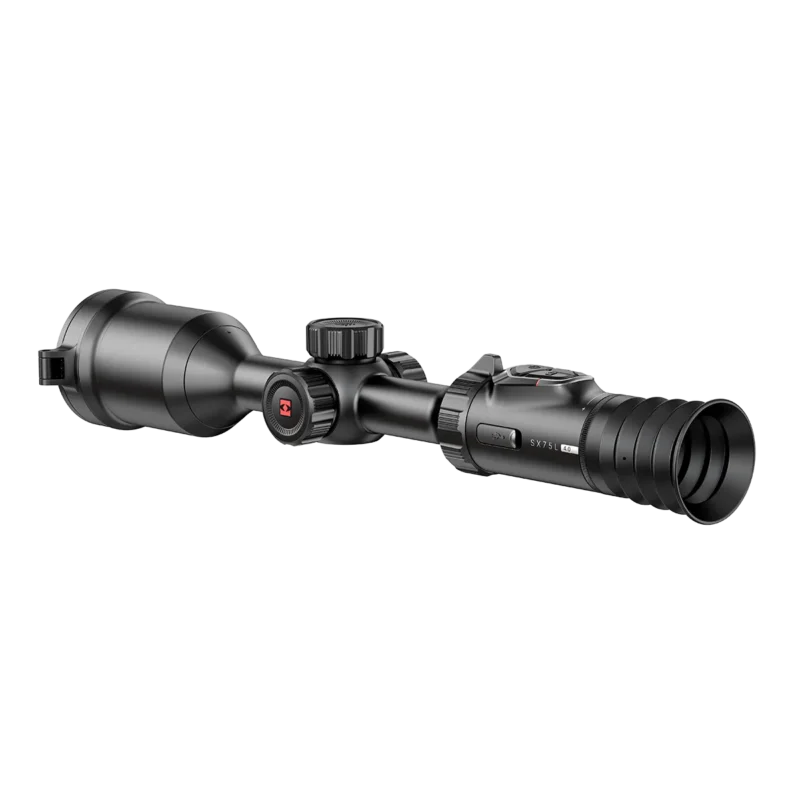

HIKMICRO Stellar 4.0 SX75L Thermal Rifle Scope with LRF

The HIKMICRO Stellar 4.0 SX75L Thermal Rifle Scope brings the latest generation of HIKMICRO thermal imaging technology, combining a high-resolution 1280×1024 thermal sensor, 75mm F1.2 lens and integrated laser rangefinder. Designed for users looking for a premium long-range thermal scope, the SX75L delivers impressive image detail, advanced image processing and a manufacturer-specified detection range of up to 3,600 metres.

As a new HIKMICRO thermal scope in the UK market, the Stellar 4.0 SX75L combines traditional riflescope styling with modern thermal imaging technology. Its 12μm pixel pitch and NETD below 12mK help reveal small temperature differences, while the 50Hz refresh rate provides smooth thermal viewing.

The powerful 75mm thermal lens works alongside adjustable magnification from 3.0× to 30×, giving the SX75L the specifications expected from a high-performance long-range thermal imaging scope. Its integrated laser rangefinder measures distances up to 1,200 metres, with onboard ballistic calculation providing additional functionality.

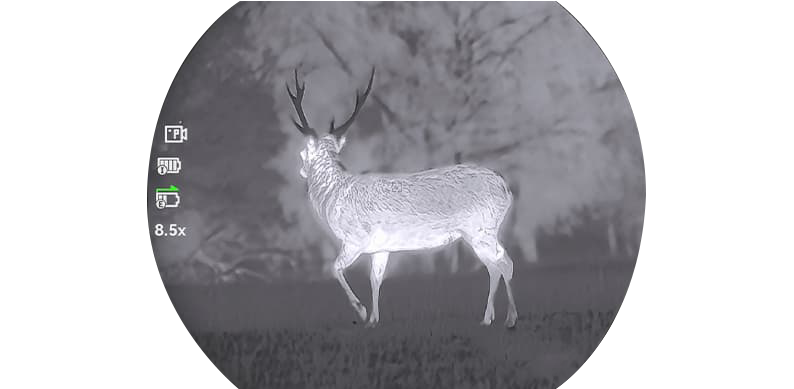

1280×1024 High-Resolution Thermal Imaging

At the centre of the HIKMICRO Stellar 4.0 SX75L is a high-resolution 1280×1024 VOx thermal detector with a 12μm pixel pitch. Combined with NETD sensitivity below 12mK, the thermal sensor captures subtle temperature differences to produce detailed thermal images.

The 75mm F1.2 objective lens and 50Hz refresh rate provide the foundation for clear, smooth thermal imaging. With a detection range of up to 3,600 metres, this long-range thermal scope is designed for users seeking advanced thermal performance.

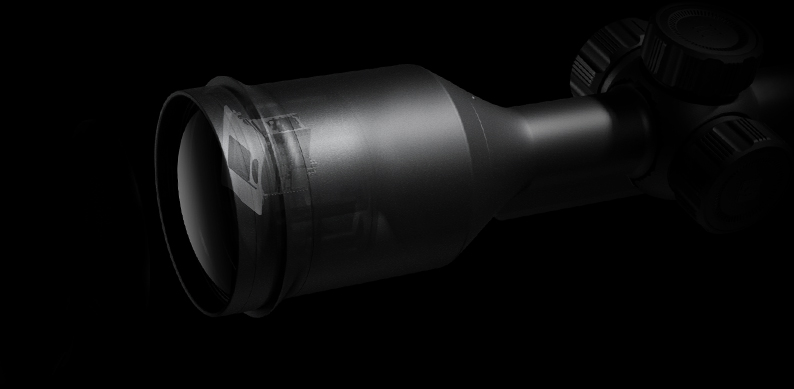

75mm F1.2 Lens and 3.0×–30× Magnification

The 75mm F1.2 objective lens provides the optical configuration for long-range thermal observation. Adjustable magnification from 3.0× to 30× allows users to change image scale through the dedicated digital zoom ring.

Rear-ring focusing supports adjustment from a minimum focusing distance of 10 metres, while picture-in-picture provides an additional viewing window without losing the main image.

Integrated Laser Rangefinder and Ballistic Calculator

The Stellar 4.0 SX75L features an integrated laser rangefinder capable of measuring distances from 10 to 1,200 metres, with an accuracy of ±1 metre.

The built-in ballistic calculator adds further functionality, while five zeroing profiles allow separate configurations to be stored. Freeze zeroing holds the image during reticle adjustments, making the zeroing process easier to manage.

2560×2560 AMOLED Display and Advanced Image Processing

The 1.03-inch AMOLED display features a 2560×2560 resolution, presenting detailed thermal images through a high-resolution viewing system.

HIKMICRO HSIS shutterless imaging technology, Image Pro 4.0, Zoom Pro and Sync Pro work alongside six colour palettes to provide different ways of viewing thermal scenes.

Available palettes include:

• White Hot
• Black Hot
• Red Hot

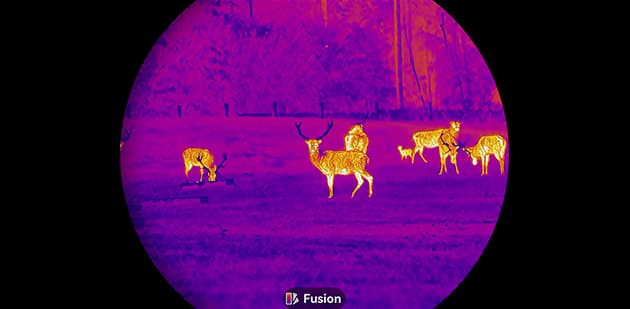

• Fusion
• Red Monochrome
• Green Monochrome

Brightness, contrast and warm or cold tone adjustments allow further control over the displayed image.

Video Recording, Wi-Fi and 64GB Internal Storage

The HIKMICRO Stellar 4.0 SX75L includes 64GB of built-in EMMC storage for photographs, videos and audio recordings. Recoil-activated recording provides an additional recording function.

Hotspot connectivity allows connection to a compatible smartphone for live viewing, remote control and access to saved recordings through the HIKMICRO application.

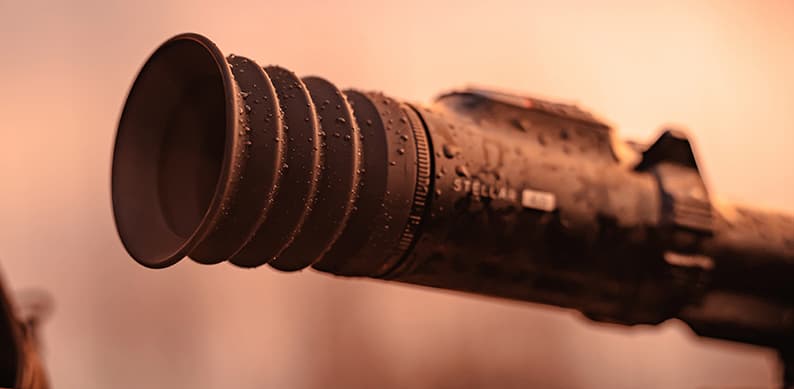

Rechargeable Battery System and IP67 Protection

The SX75L uses two internal rechargeable lithium batteries alongside a replaceable external rechargeable 18650 battery. The external battery supplies power first, followed by the internal batteries.

Operating time is specified at up to seven hours at 25°C with the laser rangefinder switched on. USB Type-C charging supports the internal batteries, while the external battery requires its separate charger.

With an IP67 protection rating, a specified operating temperature range of -30°C to +55°C and a maximum recoil specification of 6,000J, the Stellar 4.0 SX75L is built around a robust magnesium alloy housing.

Why Choose the HIKMICRO Stellar 4.0 SX75L?

• New-generation HIKMICRO Stellar 4.0 thermal technology.
• 1280×1024 high-resolution thermal sensor.
• NETD below 12mK thermal sensitivity.
• 75mm F1.2 thermal objective lens.
• Long-range detection up to 3,600 metres.
• Integrated laser rangefinder up to 1,200 metres.
• Built-in ballistic calculator.
• 3.0×–30× adjustable magnification.
• 2560×2560 AMOLED display.
• 50Hz thermal refresh rate.
• HSIS shutterless imaging technology.
• Image Pro 4.0 and Zoom Pro.
• 64GB internal recording storage.
• Five zeroing profiles.
• Rechargeable internal and external battery system.
• IP67 protection rating.
• Standard 30mm mounting.

The HIKMICRO Stellar 4.0 SX75L is a high-specification thermal rifle scope combining advanced thermal imaging, long-range detection, integrated laser ranging and ballistic calculation. For customers comparing the latest UK thermal scopes, it offers an impressive combination of sensor resolution, lens performance and onboard features.

Technical specification tables

Thermal imaging and optical specifications

Display and image processing

Laser rangefinder and recording

Battery and physical specifications
