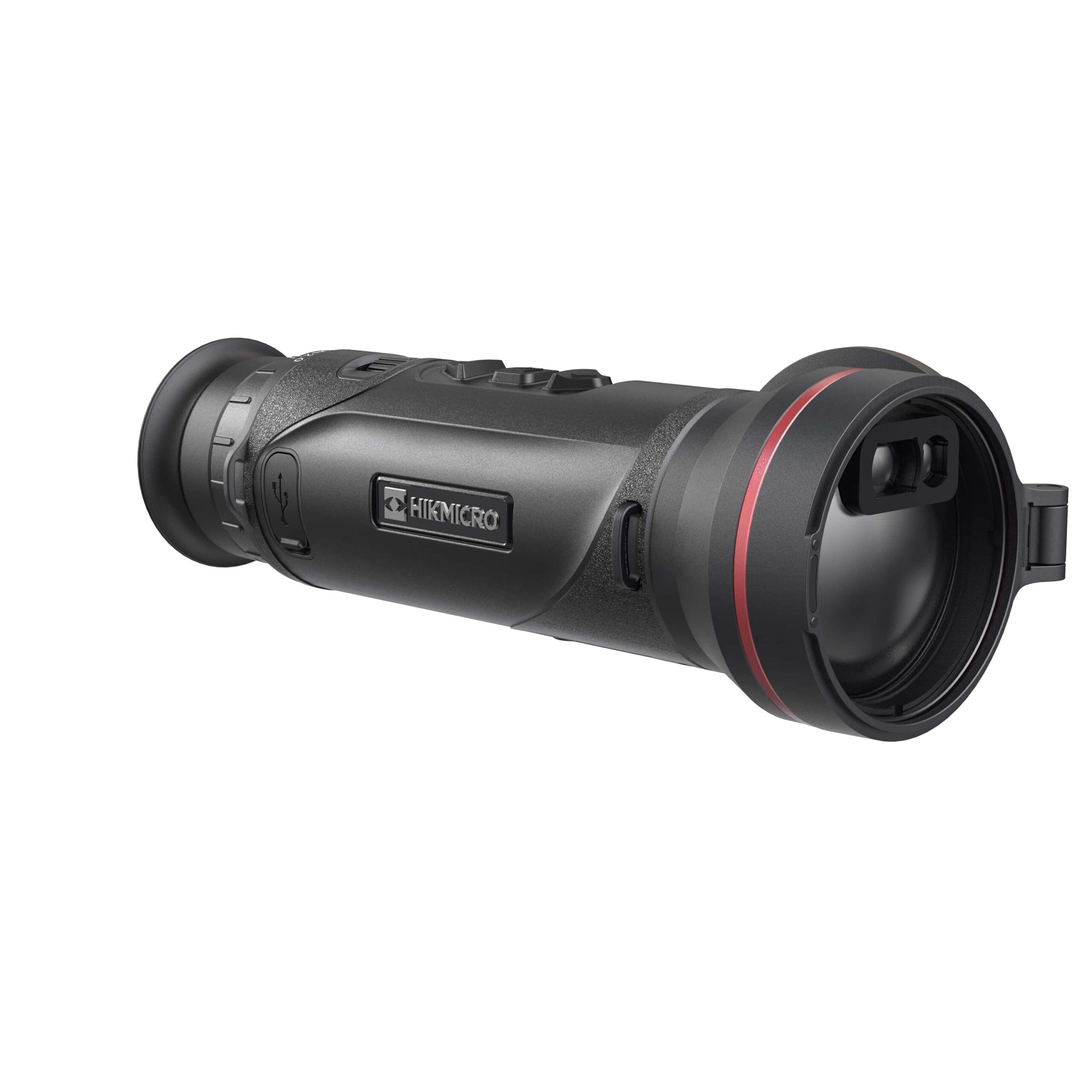

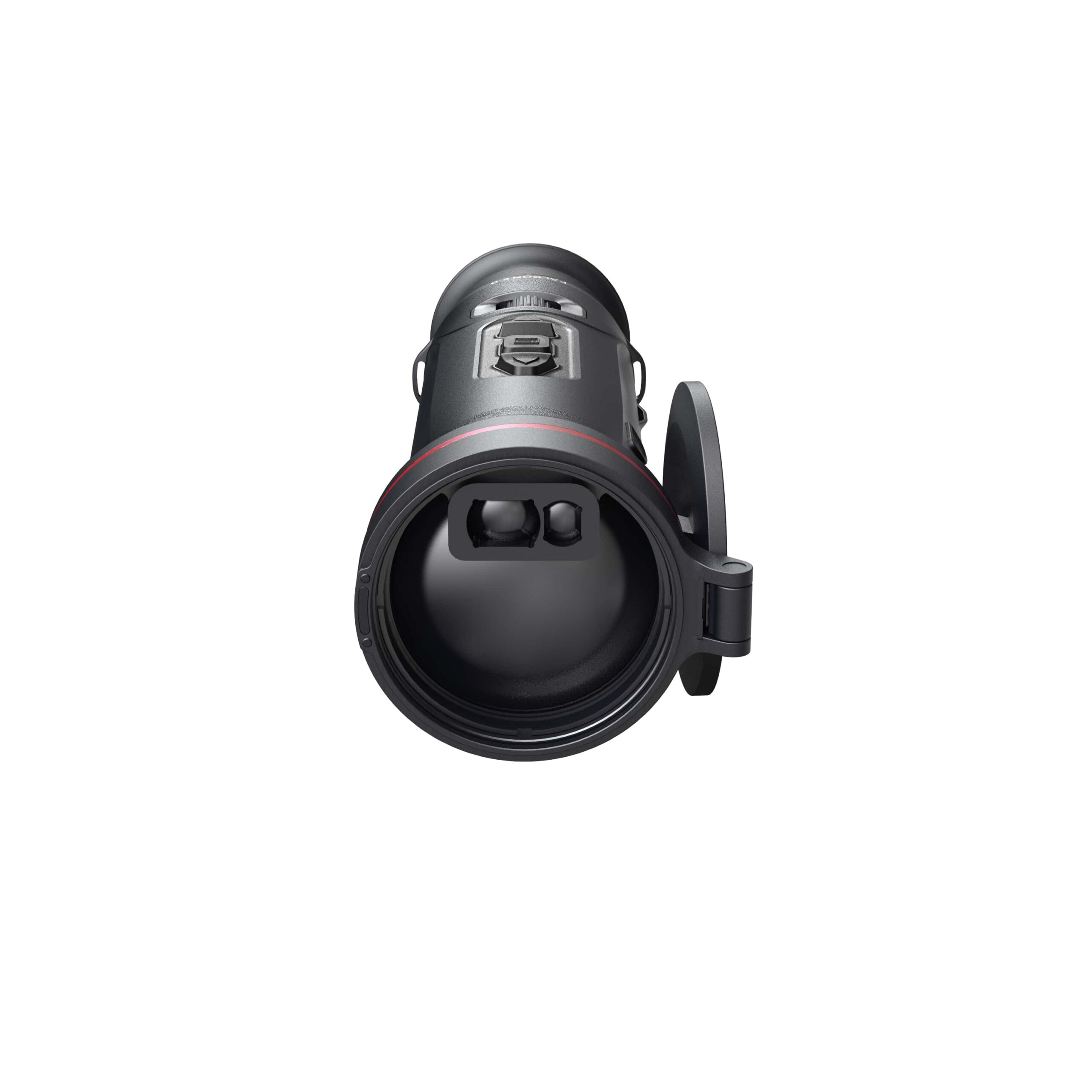

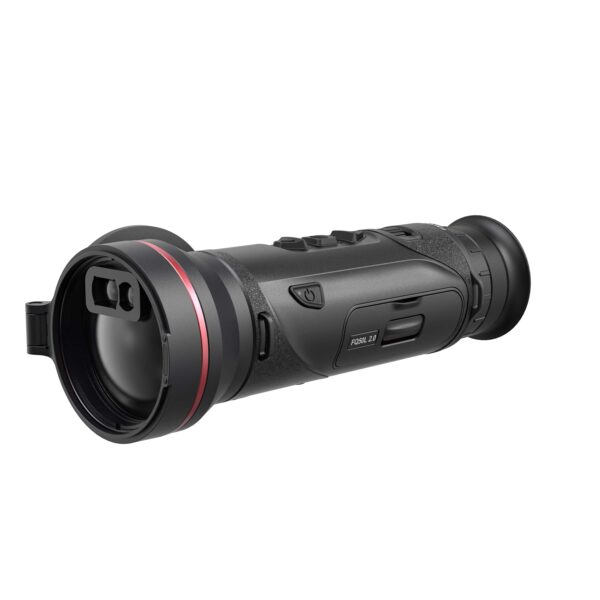

HIKMICRO Falcon FQ50L 2.0 Thermal Monocular
The HIKMICRO Falcon FQ50L 2.0 Thermal Monocular is a high-performance handheld thermal imaging device designed for professionals and outdoor enthusiasts. Below is a detailed breakdown of its features, specifications, and applications:
Key Features
- High Sensitivity Thermal Module:
- NETD < 15 mK: Exceptional thermal sensitivity for detecting subtle temperature differences.
- 640 × 512 Resolution: High-resolution thermal imaging with a 12 µm pixel pitch for detailed visuals.
- Advanced Optics:
- 50 mm, F0.9 Lens: Provides a long detection range of up to 2,600 meters.
- 8.8° × 7.0° Field of View: Offers a balanced perspective for wide-area scanning and detailed observation.
- High-Resolution Display:
- 0.49-inch OLED Display: 1920 × 1080 resolution for sharp, vibrant images.
- Multiple Palettes: Includes Black Hot, White Hot, Red Hot, Fusion, and monochrome options for versatile viewing.
- Integrated Laser Rangefinder (LRF):
- Range: Up to 1,000 meters with an accuracy of ±1 meter.
- Wavelength: 905 nm, Class 1 laser for safe operation.
- Ergonomic Design:
- Lightweight: Weighs only 583 grams with the battery.
- Compact Cylindrical Shape: Ensures comfortable handling during extended use.
- Long Battery Life:
- Replaceable 21700 Battery: Provides over 6 hours of continuous operation.
- Type-C Charging: Supports direct charging and external power supply.
- Durability:
- IP67 Protection: Dustproof and waterproof, suitable for harsh environments.
- Operating Temperature: -30°C to 55°C (-22°F to 131°F).
- Advanced Imaging Technology:
- HIKMICRO Shutterless Image System (HSIS): Ensures smooth, uninterrupted imaging without the need for a shutter.
- Image Pro 2.0: Enhances image quality and detail.
- Additional Features:
- Hot Track: Automatically tracks the hottest point in the scene.
- PIP (Picture-in-Picture): Allows simultaneous viewing of zoomed and wide-angle images.
- WiFi Connectivity: Supports 2.4/5 GHz bands for wireless data transfer.
- Built-in Storage: 64 GB memory for video recording and snapshot capture.
Applications
- Wildlife Observation: Ideal for tracking animals in low-light or dense foliage.
- Search and Rescue: Detects heat signatures in challenging environments.
- Marine Rescues: Locates individuals in water or during nighttime operations.
- Hunting: Enhances visibility in complete darkness or adverse weather.
- Surveillance and Security: Monitors large areas with precision.
Specifications Summary
Feature | Details |
---|---|
Sensor | VOx Uncooled Focal Plane Arrays |
Resolution | 640 × 512 |
Pixel Pitch | 12 µm |
Frame Rate | 50 Hz |
NETD | < 15 mK (@25°C, F#=1.0) |
Lens | 50 mm, F0.9 |
Detection Range | Up to 2,600 meters |
Display | 0.49-inch OLED, 1920 × 1080 resolution |
Battery Life | ≥6 hours |
Weight | 583 grams (with battery) |
Dimensions | 213.4 mm × 69.6 mm × 82.9 mm |
Laser Rangefinder | 905 nm, Class 1, up to 1,000 meters (±1 m accuracy) |
Storage | 64 GB built-in memory |
Connectivity | 2.4/5 GHz WiFi |
Protection | IP67 (dustproof and waterproof) |
Warranty and Support
- Warranty: 3 years for the main unit.
- UK Service Centre: HIKMICRO offers full technical support and a hotline: 0203 514 0092.
The HIKMICRO Falcon FQ50L 2.0 is a versatile, reliable, and high-performance thermal monocular suitable for a wide range of professional and recreational applications. Its advanced features, lightweight design, and long battery life make it an excellent choice for users seeking precision and durability in thermal imaging.
