Product Description

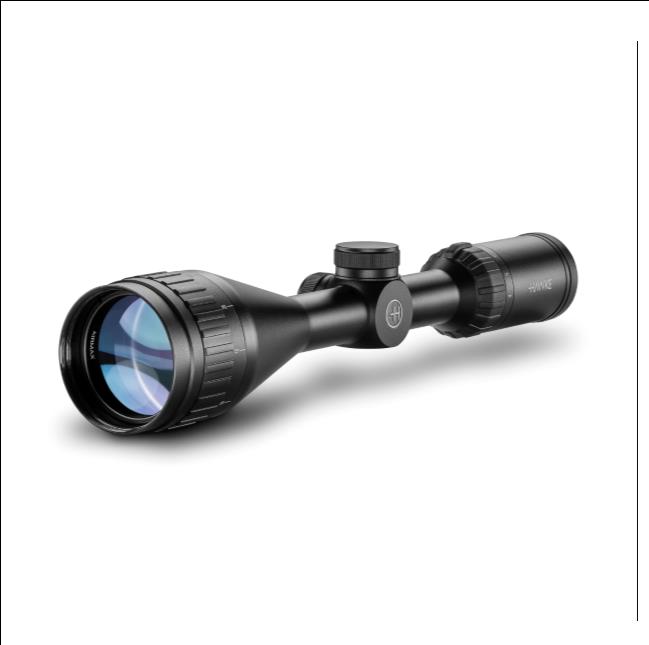

Hawke Airmax 4-12×50 AO AMX
Specialist scopes designed by airgunners for airgunners!
Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
-
- Capped Low-Profile Turrets
- 1 Inch
- Wide Angle
- 11 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
- AMX Reticle Designed For Airguns
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke No-Fault Lifetime Warranty.
AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
MORE RETICLE INFORMATION
- Length: 329mm 13″
- Weight: 620g 21.9oz
- Eye relief: 89mm 3.5″
- Focus/Parallax – Adjustable Objective 9.1m – 8 10yds – 8
- Field of View: 10.0 – 3.7m @100m 29.9 – 11.0ft @100yds
- Exit Pupil: 13-4mm 0.5-0.2″
- Chassis 1″ Mono-tube
- Optical System 4-12×
- Objective 50mm
- Illumination N/A
- Reticle AMX
- Elevation Increment 1/4 MOA
- Elevation Adjustment Range: 70 MOA
- Windage Increment 1/4 MOA
- Windage Adjustment Range 70 MOA
- Material Aluminium
- Ocular Type Fast Focus
- Lens Coating Fully Multi-Coated – 16 Layers
- Power Selector Style Rubber Coated Posi-Grip
- Focal Plane Second Focal Plane (SFP)
- Turret Caps Yes
- Turret Type Low Profile
